Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch

Name: Metal Butterfly Flange ValveBlue Color Dn 2 25 3 Inch
Brand: Y brand
Price: 1 USD

Quality Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch wholesale

Brand Name : Y brand

Model Number : D341X-10

Certification : ISO9001 CE

Place of Origin : China

MOQ : 10 pieces

Price : Contact Us

Payment Terms : T/T, L/C

Supply Ability : 3000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Woven bag, carton, wooden box，according to customer's requirements

Type : Butterfly Valve

Transmission mode : Handwheel

DN : 2 2.5 3 inch

PN : 1.0 MPa

Connection Form : Flange

Color : Blue

Valve body materials : cast iron+NRB

Butterfly plate material : QT450-10

Applicable medium : Water

Applicable temperature : ≤80℃

Manufacturing standard : GB12238

MOQ : 10 pcs

Contact Now

Metal Dn 2 2.5 3 Inch Wholesale Price Flanged Butterfly Valve

Flanged Butterfly Valve Description

The sealing of the valve shaft is controlled by adding rubber to the rotating surface between the butterfly plate and the valve seat. The butterfly plate with rubber sealing surface and rubber lining is adopted to ensure that the valve shaft is not in contact with the fluid medium in the cavity, with tight sealing performance and long service life.

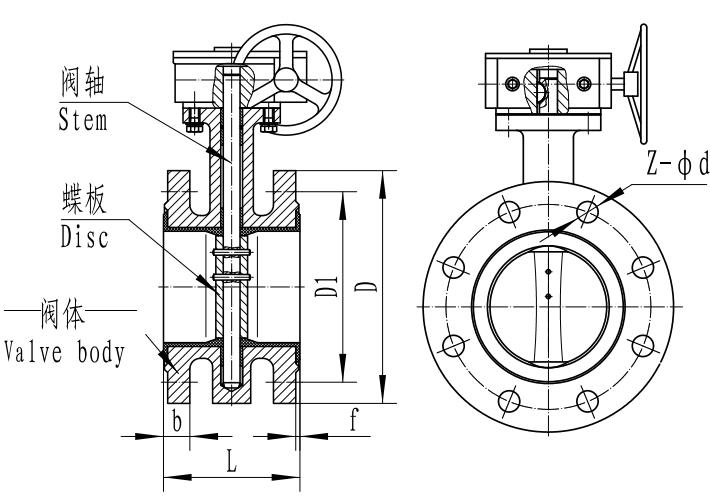

Outline And Connecting Measurement

Model	DN	Size
D341X-10	mm	D	D1(PN10)	Z-φd	L	b-f
	50	160	125	4-φ18	108	20-3
	65	180	145	4-φ18	112	20-3
	80	195	160	8-φ18	114	22-3

Metal Butterfly Flange ValveBlue Color Dn 2 2.5 3 Inch

Application

The Flanged Butterfly Valve is suitable for occasions requiring reliable sealing and good adjustment characteristics. It can be used to quickly cut off or adjust the flow rate. It is used for regulating flow and intercepting medium in water supply and drainage and gas pipelines of food, medicine, chemical industry, petroleum, electric power, textile, paper making, etc. with temperature ≤80℃ and nominal pressure ≤1.6MPa.

Performance Specification

Modle	PN(MPa)	Test Pressure(MPa)		Applicable temperature	Applicable media
Modle	PN(MPa)	Strength(water)	Sealing(water)	Applicable temperature	Applicable media
D341X-10	1.0	1.5	1.1	≤80℃	Water
D341X-16Q	1.6	2.4	1.76	≤80℃	Water
