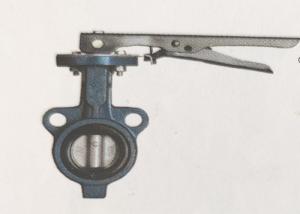

Korean Standard Handle Power 10K Pressure Wafer Butterfly Valve

Introduction

The handle butterfly valve has the advantages of simple structure, small volume and light weight. It is only composed of a few parts. Moreover, it can be opened and closed quickly by rotating 90 °, which is simple to operate. At the same time, the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body. Therefore, the pressure drop generated through the valve is very small, so it has good flow control characteristics

Usage

It is used for gas pipeline in sulfuric acid industry: inlet and outlet of blower in front of furnace, inlet and outlet of relay fan, electric demist series and connecting valve, inlet and outlet of S02 main blower, converter regulation, inlet and outlet of preheater, etc.

It is used in the sulfur burning, conversion and dry absorption section of sulfur based sulfuric acid system. It is the preferred brand of valves for sulfur based sulfuric acid plant. It is considered by the majority of users as butterfly valves with good sealing performance, light operation, secondary corrosion, high temperature resistance, convenient, flexible operation, safe and reliable use, which have been widely popularized and used.

It is also widely used in the pipelines of SO2, steam, air, gas, ammonia, CO2 gas, oil, water, brine, alkali liquor, seawater, nitric acid, hydrochloric acid, sulfuric acid, phosphoric acid and other media in chemical, petrochemical, smelting, pharmaceutical, food and other industries as regulating and intercepting devices

Dimension

Korean Wafer Butterfly Valve

Handle Wafer Butterfly Valve

Iron 10K Butterfly Valve

Handle Power Iron Wafer Butterfly Valve Korean Standard 10K Pressure Images
